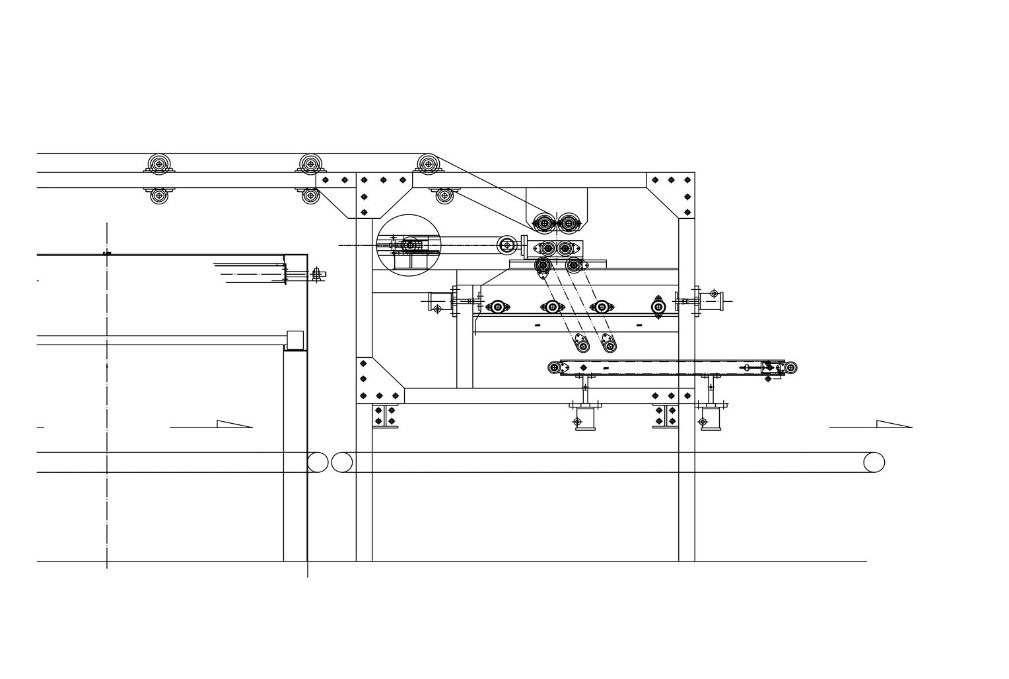

L-4307 Vertical Crosslaper, Linear Speed: 45m/min
WITH INCLINED APRON, DOUBLE-ROLL CLAMP, RECIPROCATING LAPPING, BOTTOM-APRON OUTLET
VERTICAL THICKNESS CONTROLLED BY RECIPROCATING LAPPING: 30mm TO 150mm
ALL MOTORS CONTROLLED BY INVERTER
CLAMP APRON FOR LAPPING: ANTI-STATIC PVC LEATHER APRON
INPUT APRON WIDTH: 2700mm
INPUT APRON SPEED: ≤40m/min (ADJUSTABLE)
OUTPUT APRON WIDTH: 2700mm
OUTPUT APRON SPEED:1 TO 12m/min (ADJUSTABLE)
IRREGULARITY OF FIBER WEB: ≤3% (ANY 3 POINTS AT RIGHT, MIDDLE AND LEFT SIDE)
THERE ARE TWO MODELS OF VERTICAL CROSSLAPPERS:
| Standard Design | New Design | |
| Dimensions | 2700mm wide x 3750mm long x 2700mm high | 3000mm wide x 3820mm long x 2850mm high |
| Grams per Square Meter | 3,000 and less | 5,000 and less |
| # of Motors | 5 | 4 |
| Power of each motor | 1.5 + 2.2 + 0.55 + 0.75 + 0.75 kw | 0.75 + 5.5 + 5.5 + 5.5kw |
| Speed (for weight of 800 to 1500 grams) | 1.5 to 3 meters per minute | 1.5 to 3 meters per minute |
| MAX. Thickness | 150mm | 80mm |
More information is available upon request.
